Understanding Valves_Types, Functions

Apr 4, 2025|Read time:4min



Valves: Essential Components in Fluid and Gas Control

Valves are indispensable in systems ranging from household plumbing to complex industrial machinery. They regulate, direct, or control the flow of fluids, gases, or slurries, ensuring operational efficiency and safety. Understanding valves involves exploring their mechanical design, flow dynamics, and system integration.

---

What Are Valves?

A valve is a mechanical or electromechanical device that opens, closes, or partially obstructs a passageway to manage the movement of liquids, gases, or semi-solids. Their primary role is to ensure systems operate safely, efficiently, and reliably by controlling flow rate, pressure, and direction. Valves are critical in fluid dynamics, process control, and system automation.

---

Types of Valves

Valves come in various designs, each tailored for specific applications and operating conditions. Here are some common types, along with related terms, with a special focus on gate valves to incorporate brass gate valve keywords:

Gate Valves

• Function: Used to start or stop the flow of liquid in on/off control, making them ideal for water shutoff or fluid isolation.
• Key Feature: Fully open or fully closed; not suited for throttling (flow regulation) due to potential wear on the sealing surface.
• Applications: Water supply systems, pipelines, municipal infrastructure, plumbing systems, industrial fluid control, and marine applications.

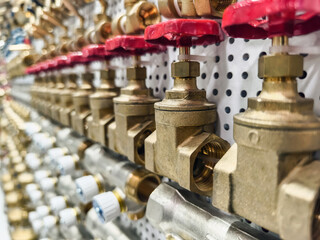

A look at Brass Gate Valve :

• • Brass Gate Valve for Plumbing Systems: A brass gate valve for plumbing systems is widely used in residential water shutoff and commercial water management. Made from copper alloy, these brass stop valves integrate seamlessly with pipe fittings and plumbing hardware, offering reliable water flow control via threaded valves. They’re a staple in home plumbing repair for their ease of installation and durability.



• • Heavy Duty Brass Gate Valve for Industrial Use: For demanding environments, a heavy duty brass gate valve for industrial use provides robust flow regulation. These rugged brass valves or brass forged valves handle high-pressure conditions in factories, HVAC systems, or industrial fluid control, earning their reputation as durable shut-off valves and heavy-duty fittings.



• • Brass Gate Valve 1 Inch Price Comparison: Budget-conscious buyers often search for a brass gate valve 1 inch price comparison to find affordable gate valves. These 1-inch brass valves are popular for their valve sizing versatility in plumbing parts, offering quarter-turn valve price deals and serving as brass flow valve options for cost-effective projects like home plumbing upgrades



• • Corrosion Resistant Brass Gate Valve for Marine Applications: In marine plumbing, a corrosion resistant brass gate valve for marine applications excels due to its rust-proof and anti-corrosion properties. These brass alloy valves withstand seawater and saltwater, making them ideal seawater gate valves or saltwater shut-off valves for corrosion-free flow control in coastal or marine settings.



• • Brass Gate Valve for Water Shut Off in Home Renovation: DIY enthusiasts and contractors favor a brass gate valve for water shut off in home renovation for water isolation during upgrades. These brass water stoppers or water system fittings are perfect for home plumbing repair, serving as gate valves for DIY or shut-off valve replacements in brass pipeline valve installations



• Related Terms: Wedge gate, parallel gate, knife gate, sealing surface, bonnet, stem, brass alloy durability, threaded connection, water line control, corrosion resistance.



Ball Valves

• Function: Controls flow using a rotating spherical ball with a bore.
• Key Feature: Quick quarter-turn operation, provides a bubble-tight seal.
• Applications: Gas pipelines, chemical industries, petrochemical plants.

Related Terms: Floating ball, trunnion-mounted, port size, actuator, PTFE seats, blowout-proof stem.



Globe Valves

• Function: Designed for throttling and flow modulation.
• Key Feature: Precise control of volume and velocity of liquid or gas.
• Applications: Water cooling systems, steam lines, process engineering.

Related Terms: Disc, seat ring, flow coefficient (Cv), linear motion, packing gland, bellows seal.



Butterfly Valves

• Function: Regulates flow using a rotating disc or vane.
• Key Feature: Lightweight, compact design, and low pressure drop.
• Applications: HVAC systems, food processing, slurry handling.

Related Terms: Wafer type, lug type, eccentric disc, resilient seat, torque, flow turbulence.



Check Valves

• Function: Prevents backflow or reverse flow in a system.
• Key Feature: Automatically operates based on flow direction and pressure differential.
• Applications: Pumps, drainage systems, compressor discharge.
• Related Terms: Swing check, lift check, non-return valve, clapper, spring-loaded, water hammer.



Air Valves

• Function: Releases trapped air or allows air entry to maintain pressure balance.
• Key Feature: Prevents airlocks, vacuum formation, and cavitation.
• Applications: Water pipelines, irrigation systems, hydronic systems.

Related Terms: Air release valve, air/vacuum valve, combination valve, orifice size, venting, surge protection.

Angle Valves

• Function: Redirects fluid or gas at a 90-degree angle while controlling flow.
• Key Feature: Combines flow control with directional change in a single unit.
• Applications: Plumbing, chemical processing, marine systems

Related Terms: Angle seat, piston valve, flow path, corrosion resistance, threaded connection, union bonnet.

Float Valves

• Function: Automatically maintains liquid levels in tanks or reservoirs.
• Key Feature: Operates via a buoyant mechanism responding to fluid height.
• Applications: Water tanks, cooling towers, livestock watering systems.

Related Terms: Pilot valve, float arm, equilibrium valve, level control, hydraulic balance, overflow prevention.



Foot Valves

• Function: Prevents backflow at the suction end of a pump.
• Key Feature: Includes a strainer to filter debris and protect the pump.
• Applications: Water wells, irrigation systems, sump pumps.

Related Terms: Suction lift, priming, screen mesh, check mechanism, submersible pump, inlet pressure.



Safety Valves

• Function: Automatically releases excess pressure to prevent overpressure conditions.
• Key Feature: Critical for system integrity in high-pressure environments.
• Applications: Boilers, pressure vessels, industrial plants.

Related Terms: Set pressure, blowdown, pop-off valve, relief capacity, ASME certification, burst disc.

• Example: Pressure Relief Valves
  • Function: Releases pressure when it exceeds a pre-set limit.
  • Key Feature: Protects equipment from catastrophic failure.
  • Applications: Boilers, chemical plants, refineries.

Related Terms: Safety factor, overpressure protection, spring mechanism, nozzle, huddling chamber, reseating pressure.

---

Key Functions of Valves

Valves perform several critical tasks in fluid management and system optimization:

• Flow Control: Adjust mass flow rate or volume flow rate to meet system demands.
• Pressure Regulation: Maintain safe operating pressures to prevent mechanical stress or rupture.
• System Isolation: Enable shutoff for maintenance, repairs, or emergency response.
• Backflow Prevention: Ensure unidirectional flow to avoid contamination or system inefficiency.
• Safety Assurance: Mitigate risks from pressure surges, leaks, or thermal expansion.

---

Common Applications of Valves

Valves are ubiquitous across industries and systems:

• Industrial: Oil and gas, power generation, chemical processing, pulp and paper, mining.
• Household: Plumbing fixtures, irrigation sprinklers, gas appliances, water heaters.
• Medical: Oxygen delivery systems, ventilators, anesthesia machines, dialysis equipment.
• Transportation: Fuel injection systems, hydraulic brakes, pneumatic controls, marine propulsion.
• Environmental: Wastewater treatment, desalination plants, air pollution control, renewable energy systems.

---

Choosing the Right Valve

Selecting the appropriate valve requires evaluating:

• Fluid Properties: Viscosity, corrosiveness, toxicity, particulate content.
• Operating Conditions: Pressure range, temperature limits, flow velocity.
• Control Requirements: On/off switching, proportional control, automated operation.
• Material Compatibility: Stainless steel, brass, PVC, exotic alloys for chemical resistance.
• Standards and Certifications: API, ANSI, ISO, NSF for compliance with industry regulations.

---

Conclusion

Valves may seem simple, but they are engineering marvels that underpin countless systems worldwide. By understanding their types, functions, and technical nuances—such as the versatile brass gate valve for plumbing, industrial, or marine use—you can make informed decisions in system design, maintenance, or troubleshooting. From massive industrial plants to a humble kitchen faucet, valves ensure reliability, safety, and efficiency.

Valves: small devices with big responsibilities!

---



Related Terms

• Actuation: Manual, pneumatic, hydraulic, electric, or solenoid-driven valve operation.
• Valve Trim: Internal components (stem, disc, seat) that influence flow characteristics.
• Cavitation: Formation of vapor bubbles in low-pressure zones, causing valve damage.
• Flow Coefficient (Cv): Measure of a valve’s capacity to handle flow.
• Leakage Class: ANSI/FCI standards defining allowable leakage rates (e.g., Class IV, VI).
• End Connections: Flanged, threaded, welded, or clamped valve attachments.
• Valve Sizing: Calculating the correct valve dimensions for flow and pressure requirements.
• Control Valves: Valves paired with actuators for precise process control.
• Erosion: Wear caused by high-velocity fluids or abrasive particles.
• Smart Valves: Valves with sensors for real-time monitoring and IoT integration.
• Piping Systems: Networks of pipes and valves for fluid transport.
• Maintenance Cycles: Schedules for valve inspection, lubrication, and replacement.
• Failure Modes: Scenarios like sticking, leakage, or corrosion affecting valve performance.
• Industry Standards: ASME, API, DIN, and ISO specifications for valve design and testing.
